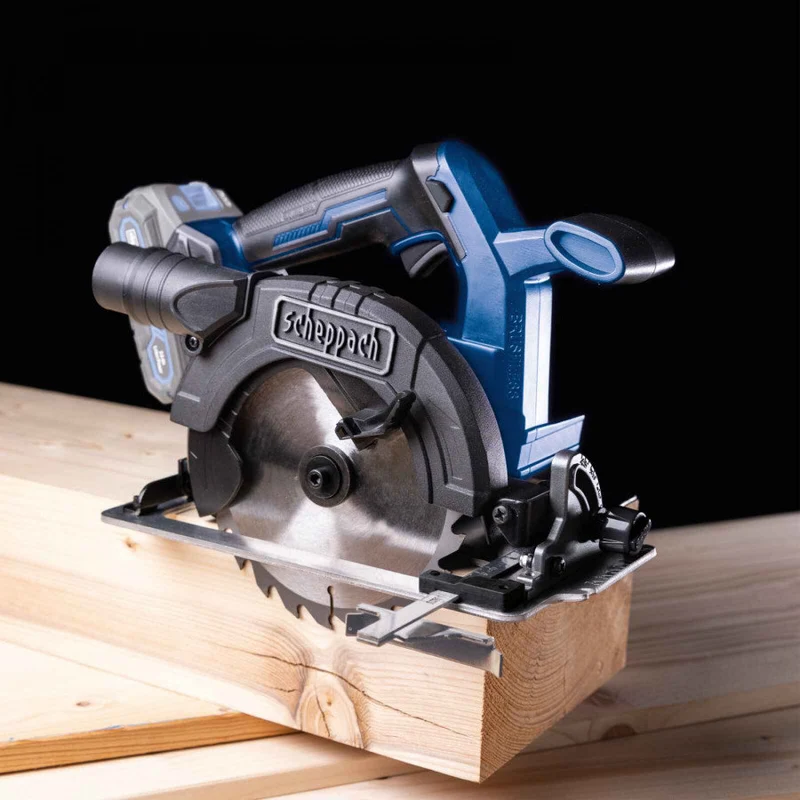

Scheppach BC-HCS165-X 20V Cordless Circular Saw

The Scheppach BC-HCS165-X is a powerful and versatile 20V cordless circular saw equipped with an energy-efficient brushless motor and precise cutting adjustments for woodworking and construction projects.

The Scheppach BC-HCS165-X cordless circular saw delivers high cutting performance and portability for both DIY enthusiasts and professionals. Driven by modern brushless motor technology it reaches idle speeds of up to 4,500 rpm, enabling effortless and clean cuts across a wide variety of timber and board materials.

Engineered for accuracy, the saw features stepless bevel cutting adjustments from 0° to 45°. It provides a maximum cutting depth of 55 mm at a 90° angle and up to 40 mm at a 45° angle, giving users the flexibility needed for demanding carpentry tasks and frame construction.

User convenience and safety are paramount in its design. The soft-grip handle minimizes operator fatigue during extended use, while the soft start and quick stop mechanisms ensure smooth and secure tool operation. A dual safety switch allows safe starting from either side, accommodating both left- and right-handed users.

Working in low-light environments is made effortless by the integrated LED work light illuminating the cutting line. For a clean and dust-free workspace, an included dust extraction adapter connects seamlessly to standard external vacuum systems.

Built to last, the saw features a sturdy aluminum pendulum guard to protect the blade and operator. The integrated SPINDLE LOCK mechanism allows quick and simple blade changes using the onboard hex key.

This tool is part of the versatile Scheppach IXES 20V battery system, allowing compatible 20V lithium-ion batteries from the series to power multiple tools across the workshop and garden.

• Motor Type: Brushless electric motor

• Voltage: 20 V

• No-Load Speed: 4,500 rpm

• Blade Diameter: 165 mm

• Number of Teeth: 24 (pre-installed)

• Cutting Depth at 90°: Max. 55 mm

• Cutting Depth at 45°: Max. 40 mm

• Bevel Cutting Angle: 0° to 45° (stepless)

• Spindle Lock: Yes (SPINDLE LOCK)

• Worklight: Integrated LED

• Dust Extraction: Adapter for external vacuum included

• Included Accessories: 1x 165 mm saw blade (24T), 1x hex key, 1x parallel guide, 1x dust extraction adapter
