BOSCH DWB66BC50 Series 2 Wall-mounted cooker hood 60 cm Stainless steel
2 313,96 kr3 862,39 kr40% OFF
Beskrivning
Design
Wall hood
60 cm Stainless Steel Chimney hood
Push buttons
60 cm Chimney hood
Performance
Speed settings: 3-speeds
Extraction rate exhaust air according to EN 61591: max. 621 m³/h
Max. noise level according to EN 60704-3 and EN 60704-2-13: 69 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)
Comfort
Twin channel high performance fan motor
Capacitor energy efficient
2 x 1.5W LED
Light Intensity: 99 lux
Colour Temperature: 3500 K

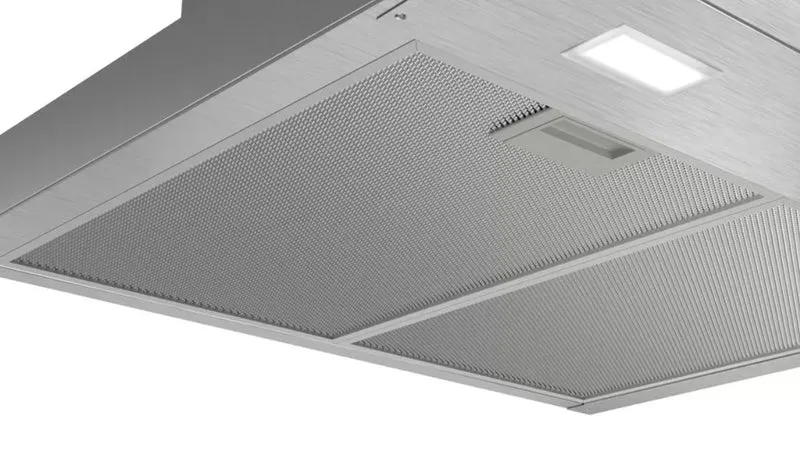

Dishwasher safe grease filter
Energy Efficiency Class: B*
Average Energy Consumption: 46.5 kWh/year*
Blower Efficiency Class: A*
Lighting Efficiency Class: A*
Grease Filtering Efficiency Class: B*
Technical Information

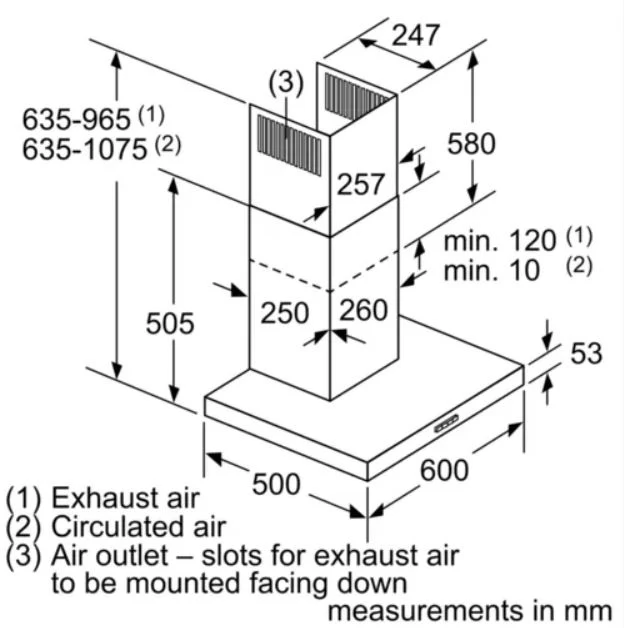

Dimensions exhaust air (HxWxD): 635-965 x 600 x 500 mm
Dimensions recirculating (HxWxD): 635-1075 x 600 x 500 mm
Dimensions recirculating with CleanAir module (HxWxD):
703 x 600 x 500mm - mounting with outer chimney
833-1163 x 600 x 500 mm - mounting with telescopic chimney
Dimensions recirculating with CleanAir module (HxWxD):
703 x 600 x 500mm - mounting with outer chimney
833-1163 x 600 x 500 mm - mounting with telescopic chimney
Suitable for ducted or re-circulated operation
Recirc. kit or clean air kit
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Back-pressure flap: Yes
Power rating: 220 W
Electrical cable lenght 1.3 m
Noise min./max. Normal Level: 48/69 dB*
60 cm Chimney hood
wall
With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
Extraction rate in recirculation mode: Max. normal use:422m³/h
Noise level in recirculation mode: Max. normal use:74 dB(A) re 1 pW
For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed
Dimensions recirculating with CleanAir module (HxWxD): 833-1163 x 600 x 500 mm
